KM-230-C

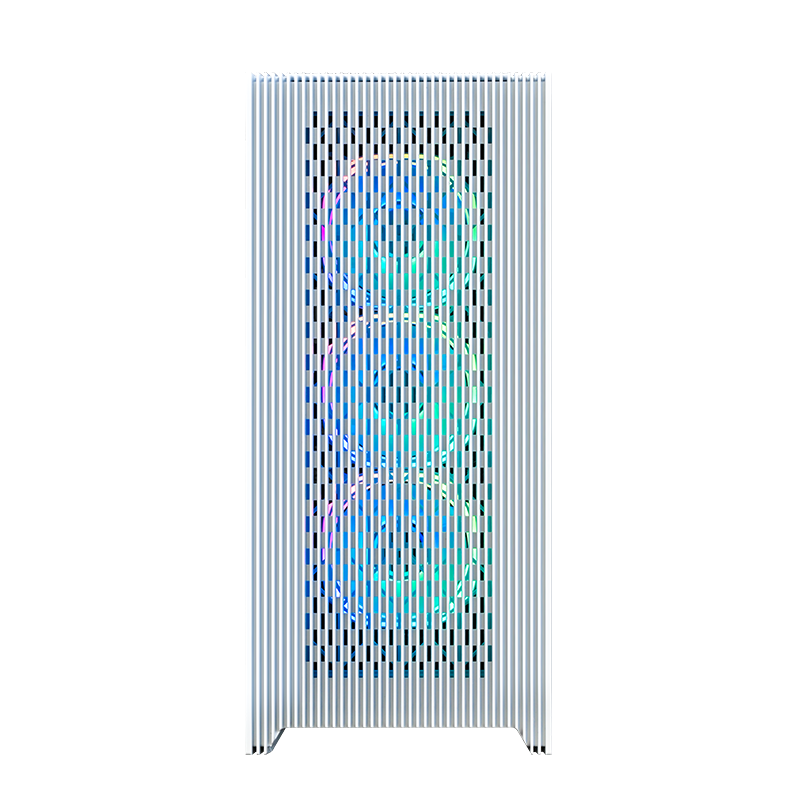

Front Panel: ABS PLASTIC+removable dust mesh
Left  Side   Panel:Hinged glass door
Right Side Panel:Metal
Chassis:SPCC 0.6mm ,Black painting interior
USB2.0 + HD AudioStandard
USB3.0 x 1   (included)
TopMetal
PSU Position/TypeBottom / ATX
Motherboard TypeEATX/ATX /M ATX / ITX
Reserved Fan Ports:Side:    2x120 mm  (optional)
Top:    3x120 mm  (optional)
Front:   3x120 mm  (optional)
Rear : 1x120 mm  (optional)
Drive Bays:3.5''   HDD         x 2
2.5''   SSD         x 2
PCI Expansion Slots:x 7
Size:Chassis: L420*W230*H480 mm
Case:     L455*W230*H510mm
Carton:   L575*W305*H540mm
Package:Standard brown carton box
Radiator support:Front /Top 360MM
