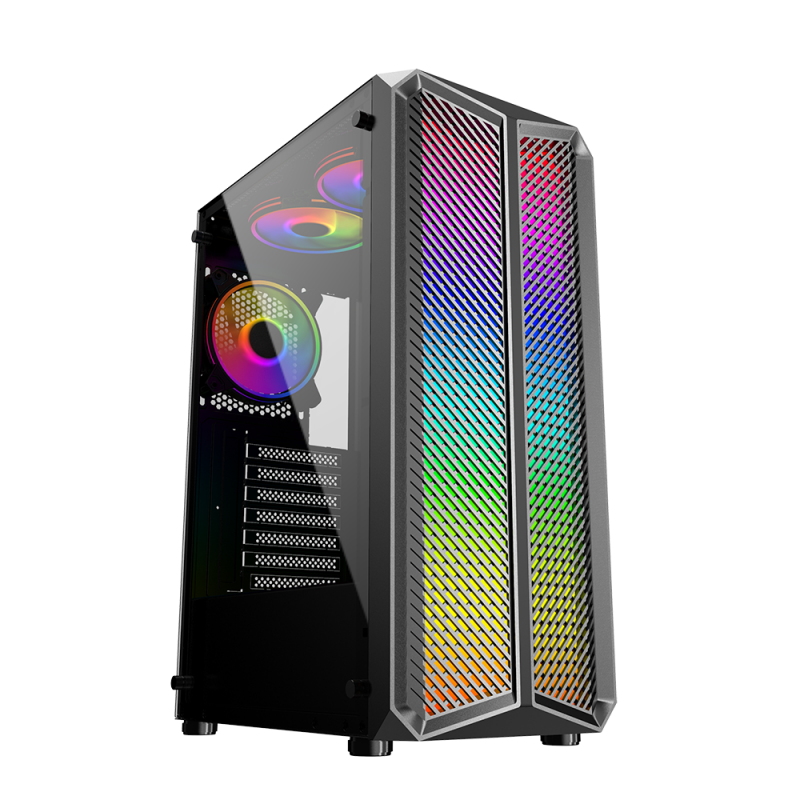

Left Side Panel:Tempered Glass window with 4 Screws

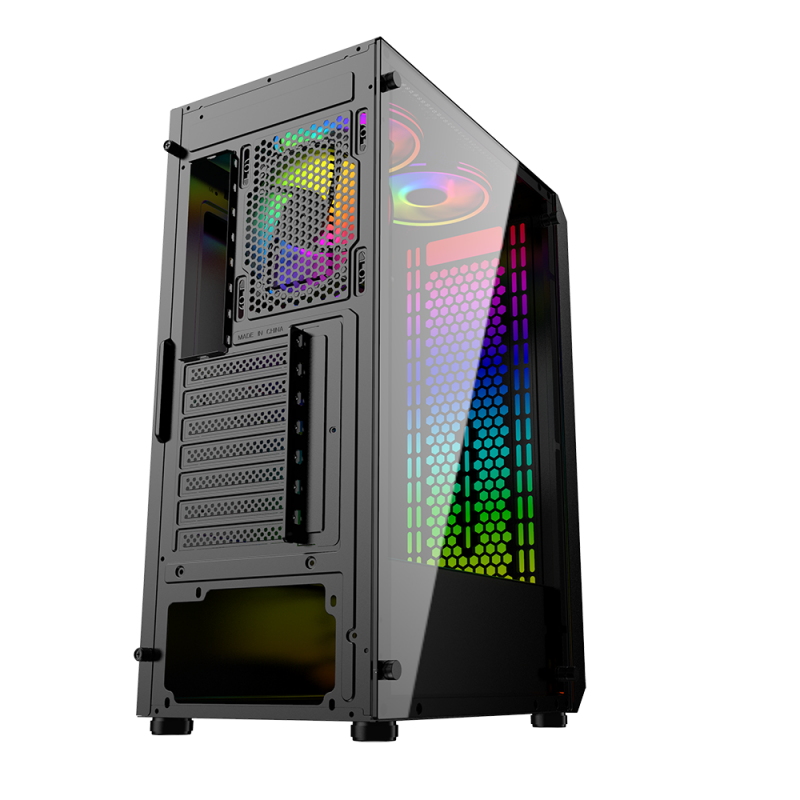

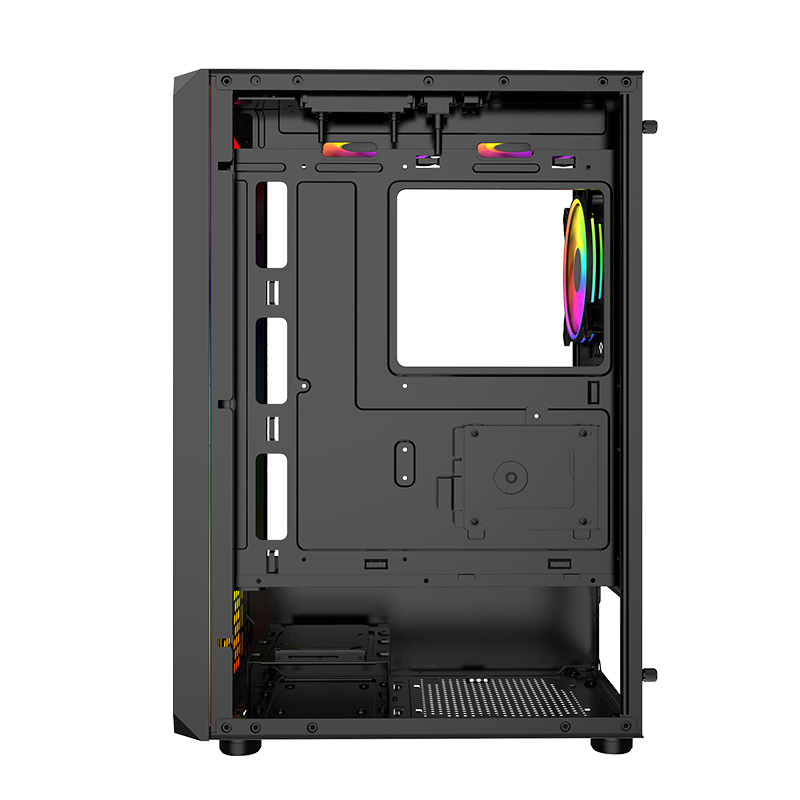

Right Side Panel:Right side cover (metal black)
Chassis:SPCC 0.45mm, Black inside

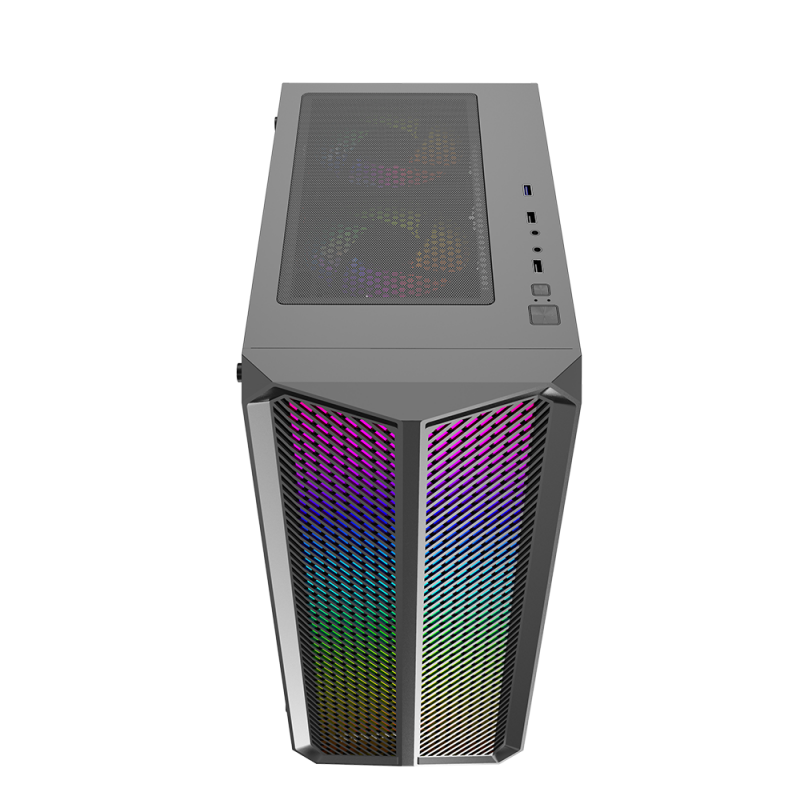

USB3.0 x 1  (included)
USB1.1+HD Audio x 2  (included)
PSU Position/TypeBottom / ATX PSU

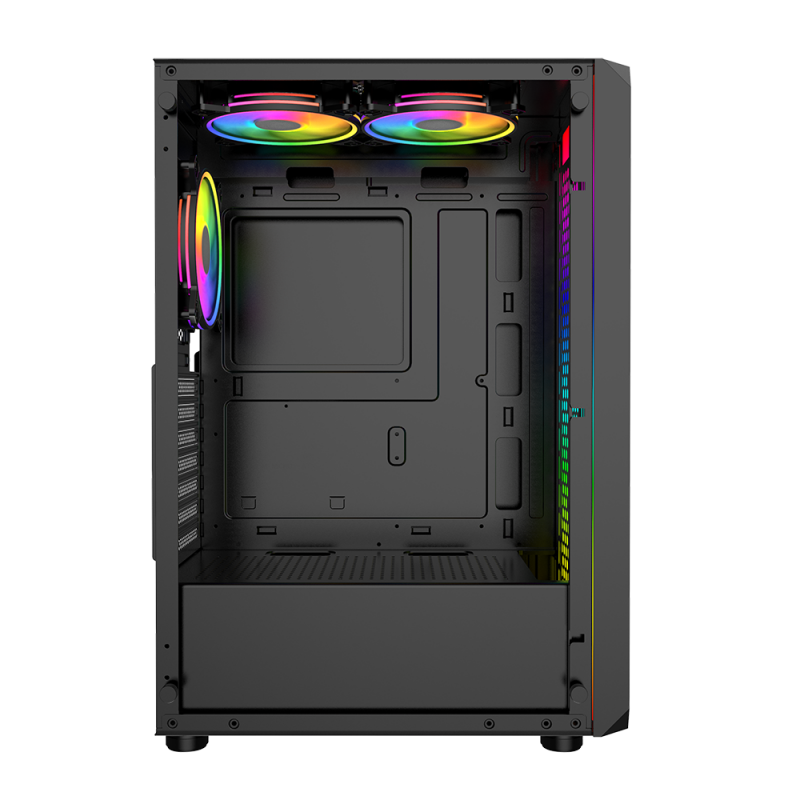

Motherboard TypeATX / M ATX/ ITX

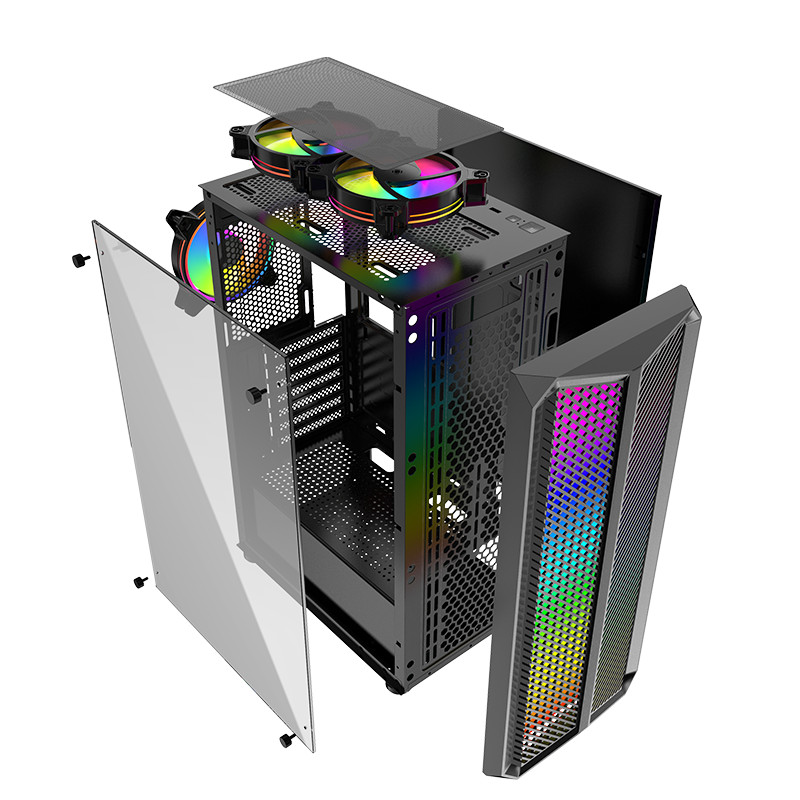

Reserved Fan Ports:Front: 3 x 120mm (optional) or 3 x 14mm (optional)
Top:  2 x 120mm (optional)
Rear: 1 x 120mm (optional)
bottom :2*120mm(optional)
Water cooling:240mm,280mm,360mm front,  240mm top panel
Drive bays:3.5 HDD*2
2.5 SSD*1
PCI Expansion Slots:7
Size:Structure size:310*200*470mm
Case size:350*200*470mm
Carton size:
Package:EPS & Brown carton box
Max.VGA Card:295mm
Max.CPU Cooler:160mm
